SILTEL THERMAL INTERFACE GAP PADS (SILICONE & SILICONE FREE)
THERMALLY CONDUCTIVE & INSULATING GAP FILLER PADS
TIMTEL's product line of SILTEL Thermally Conductive and Insulating Gap Pads offer a range of thermal conducivity performance choices, softness/compliance and pad thicknesses.

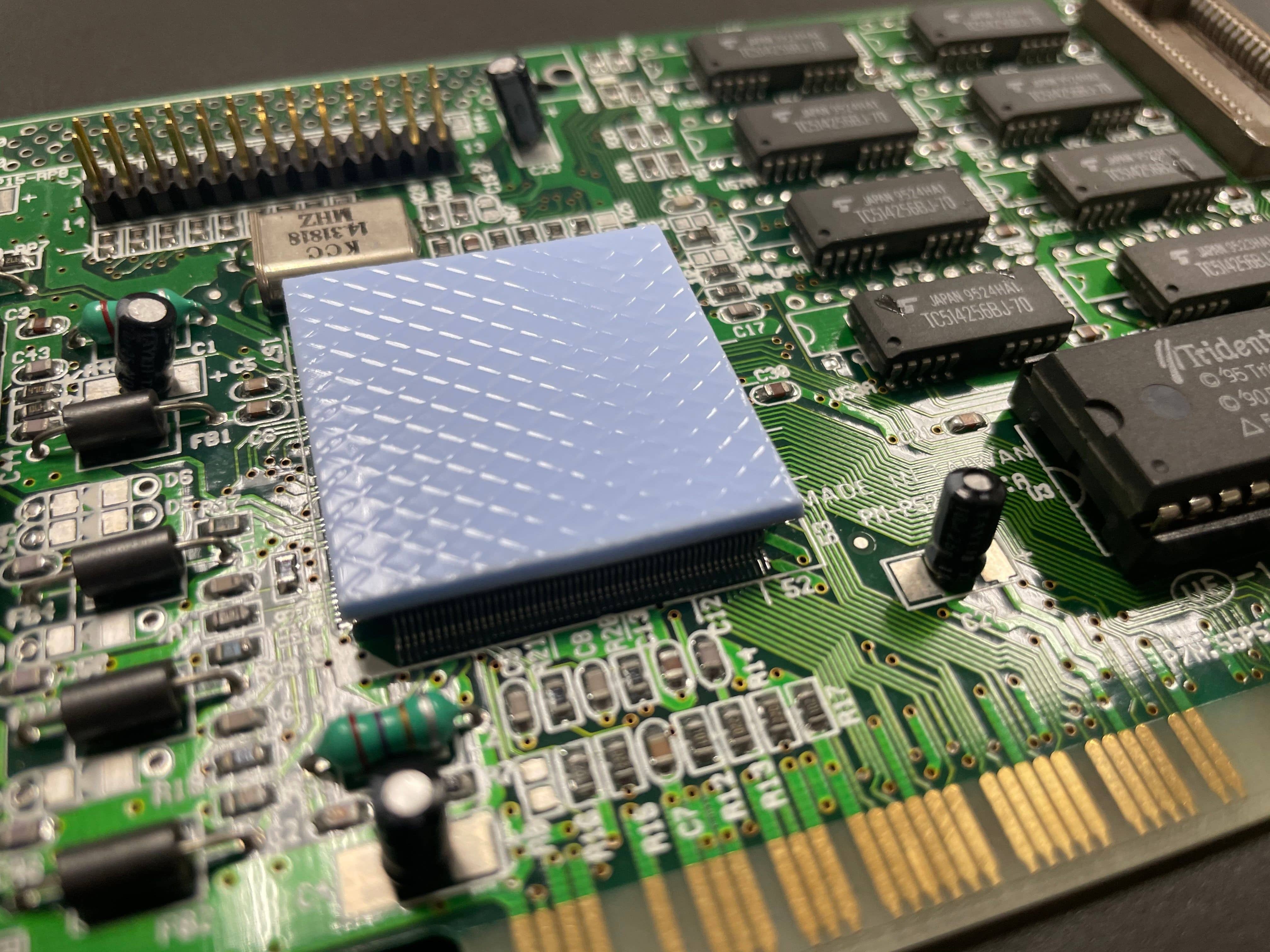

SILTEL Gap Pads are ideal solutions for applications where efficient heat transfer is required over large gaps, large interface surface tolerances or required to operate at low pressure. SILTEL Gap Pads offer electrically insulating properties delivering reliable heat transfer packaged with pad compliance all within a robust elastomer design (silicone and silicone-free).
SILTEL Gap Pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
SILTEL Gap Pads are available in sheets or cut parts to match a wide range of industry standard or customer defined outlines.
- Several thermal conductivity options
- Range of pad durometers (ultra-soft | soft | medium)
- Silicone (SG) and silicone free (NSG) options
- Electrically insulating solution
- Offers high temperature stability
- Soft and conformable elastomer design
- Excellent gap filling properties
- Ideal for a range of flatness conditions
- Efficient thermal transfer at low pressure
- Chemical resistant and shock absorbing characteristics
- Single or double side tack options
- Available in sheets or die cuts
Silicone Gap Pads (Soft Durometer)
SG-TC1.5
Thermal Conductivity: 1.5 W/m-KHardness: 65 (shore 00)Thickness: 0.50mm to 3.00mm
SG-TC2.5
Thermal Conductivity: 2.5 W/m-K
Hardness: 50 (shore 00)
Thickness: 0.50mm to 3.00mm
SG-TC2.8
Thermal Conductivity: 2.8 W/m-K
Hardness: 65 (shore 00)
Thickness: 0.50mm to 3.00mm
SG-TC3.0
Thermal Conductivity: 3.0 W/m-KHardness: 55 (shore 00)Thickness: 0.50mm to 3.00mm
SG-TC4.0
Thermal Conductivity: 4.0 W/m-K
Hardness: 60 (shore 00)
Thickness: 0.50mm to 3.00mm
SG-TC4.5
Thermal Conductivity: 4.5 W/m-K
Hardness: 60 (shore 00)
Thickness: 0.50mm to 5.00mm
SG-TC11.0
Thermal Conductivity: 11.0 W/m-KHardness: 64 (shore 00)Thickness: 1.00mm to 2.00mm
Silicone Gap Pads (Ultra Soft Durometer)
SG-TC1.2 Ultra Soft
Thermal Conductivity: 1.2 W/m-KHardness: 15 (shore 00)Thickness: 0.50mm to 3.00mm
SG-TC1.3-GF Ultra Soft
Thermal Conductivity: 1.3 W/m-K
Hardness: 5 (shore 00)
Thickness: 1.00mm to 5.00mm
Fiberglass reinforcement (GF)
SG-TC1.4-GF Ultra Soft
Thermal Conductivity: 1.4 W/m-KHardness: 10 (shore 00)Thickness: 0.50mm to 5.00mmFiberglass reinforcement (GF)
SG-TC2.0 Ultra Soft
Thermal Conductivity: 2.0 W/m-K
Hardness: 15 (shore 00)
Thickness: 0.50mm to 5.00mm
SG-TC2.0J Ultra Soft
Thermal Conductivity: 2.0 W/m-K
Hardness: 20 (shore 00)
Thickness: 0.50mm to 3.00mm
SG-TC2.4 Ultra Soft
Thermal Conductivity: 2.4 W/m-KHardness: 15 (shore 00)Thickness: 0.50mm to 10.00mm
SG-TC2.5M Ultra Soft
Thermal Conductivity: 2.5 W/m-KHardness: 20 (shore 00)Thickness: 1.00mm to 3.00mm
SG-TC3.0S Ultra Soft
Thermal Conductivity: 3.0 W/m-KHardness: 30 (shore 00)Thickness: 1.00mm to 5.00mm
SG-TC3.0X Ultra Soft
Thermal Conductivity: 3.0 W/m-KHardness: 15 (shore 00)Thickness: 0.50mm to 4.00mm
SG-TC3.2 Ultra Soft
Thermal Conductivity: 3.2 W/m-KHardness: 37 (shore 00)Thickness: 0.50mm to 5.00mm
SG-TC3.3 Ultra Soft
Thermal Conductivity: 3.3 W/m-KHardness: 45 (shore 00)Thickness: 0.50mm to 5.00mm
SG-TC6.0 Ultra Soft
Thermal Conductivity: 6.0 W/m-KHardness: 55 (shore 00)Thickness: 0.50mm to 2.00mm
SG-TC7.0 Ultra Soft
Thermal Conductivity: 7.0 W/m-KHardness: 55 (shore 00)Thickness: 1.00mm to 2.00mm
SG-TC11.0S Ultra Soft
Thermal Conductivity: 11.0 W/m-KHardness: Extreme soft (putty film)Thickness: 1.50mm to 2.00mm
Silicone-Free Gap Pads (siloxane free)
NSG-TC2.0
Thermal Conductivity: 2.0 W/m-KHardness: 50 (shore 00)Thickness: 1.00mm to 5.00mm
NSG-TC2.5
Thermal Conductivity: 2.5 W/m-K
Hardness: 47 (shore 00)
Thickness: 1.00mm to 4.00mm
NSG-TC3.0
Thermal Conductivity: 3.0 W/m-KHardness: 75 (shore 00)Thickness: 0.50mm to 5.00mm
NSG-TC5.0
Thermal Conductivity: 5.0 W/m-KHardness: 64 (shore 00)Thickness: 1.00mm to 4.00mm
NSG-TC6.0
Thermal Conductivity: 6.0 W/m-KHardness: 70 (shore 00)Thickness: 1.00mm to 5.00mm
NSG-TC8.0
Thermal Conductivity: 8.0 W/m-K
Hardness: 70 (shore 00)
Thickness: 1.00mm to 3.00mm
NSG-10.0
Thermal Conductivity: 10.0 W/m-KHardness: 65 (shore 00)Thickness: 1.00mm to 3.00mm
Request Sample or Technical Data Sheet
