DIAPHASE 60 PHASE CHANGE MATERIAL (KAPTON MT)
Diaphase 60 Phase Change Thermal Interface Material
Diaphase 60 is high performance dielectric phase-change material which utilizes Kapton® MT polyimide film to act as a thermally conductive carrier in order to deliver a uniform thickness coating of Diaphase 60 phase-change thermal compound on both sides. Through the development of this unique formulation, Diaphase 60 offers efficient thermal transfer by phase-changing during normal device operating temperatures while maintaining a uniform bond line thus driving out the air and adjusting for any surface imperfections or flatness conditions that may exist across the interface.
Being able to manufacture Diaphase 60 in multiple compound thicknesses as well as Kapton MT thicknesses allows us to meet a wide range of electronic cooling applications ranging from transistors, diodes or any type of heat generating non-isolated power device requiring efficient and reliable thermal transfer into a heat sink/case sink or heat dissipating structure.
UltraPhase 60 Features and Benefits
- Kapton MT Polyimide Film Substrate
- 60C phase change temperature
- UL94-VO Certified Material
- Low thermal impedance
- Excellent mechanical and dielctric properties
- Thixotropic -silicone free compound design
- Many substrate and coating thickness options
- Excellent replacement for thermal greases
- Reworkable after phase change
- Ideal for many types of transistor and device outlines.
- Standard double coated configuration - single side available
- Tack backed version available - Diaphase 60A
To request samples or download the technical data sheet, please click on the respective link located to the right or call:
TF: 1-888-989-3832 (US)
International: +1-949-369-7676.
Material Thickness
- K1-L05 (0.051mm | 0.002") K1-L10 (0.076mm | 0.003")
- K1.5-L05 (0.064mm | 0.0025")
- K1-L15 (0.102mm | 0.004") K2-L05 (0.076mm | 0.003")
- K2-L10 (0.102mm | 0.004") K2-L15 (0.127mm | 0.005")
- K3-L05 (0.102mm | 0.004") K3-L10 (0.127mm | 0.005")
- K3-L15 (0.152mm | 0.006")
K number indicates Kapton film thickness in mils.
L number indicates coating thickness per side in mils

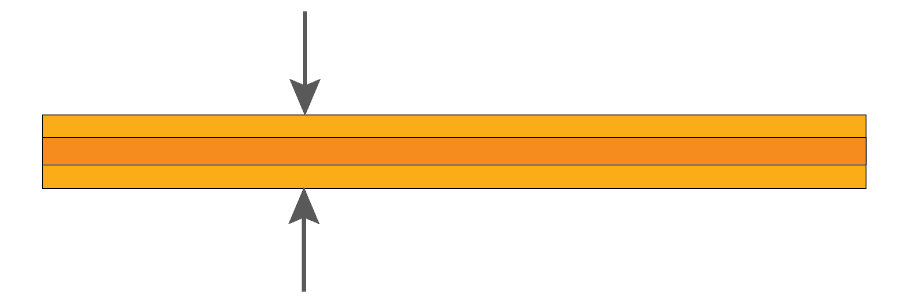

Standard Cross Section
Format: Kapton MT substrate coated both sides with a uniform thickness of phase change compound.
Typical Applications
General Specifications
- Transitor Devices (TO-218, TO-220, TO-247, TO-264)
- Non-insolated Devices
- Diodes / Relays
- Power Supply | UPS Systems
- Power Semiconductor
- RF Components
- LED Assembly
- Heat Sink | Case Sink
- Chassis Assembly
- Single or Multi-Device Pad Configurations
- Phase Change Temperature: 60C
- Thermal Conductivity: 0.46 W/m-K
- Compound Flow Design: Thixotropic
- Volumetric Expansion: 15%
- Maximum Operating Temperature: 150C
- Material Color: Orange
- Material Surface: Dry Compound Coating @ Room Temp
- Tack Options: Yes (PSA options listed at bottom)
- Full Tack Back: DiaPhase 60A
Compliance
- RoHs Compliant
- REACH Compliant
- Halogen Free Compliant
Thermal Impedance
Thermal impedance testing performed per ASTM D5470 Test Method. All figures shown are based upon L05 coating thickness. Contact us for thermal impedance figures for thicker coating types (L10, L15)
K1-L05 0.051mm | 0.002"
10 PSI - 0.156 oC-in^2/W
20 PSI - 0.146 oC-in^2/W
40 PSI - 0.130 oC-in^2/W
80 PSI - 0.109 oC-in^2/W
K2-L05 0.076mm | 0.003"
10 PSI - 0.215 oC-in^2/W20 PSI - 0.188 oC-in^2/W40 PSI - 0.163 oC-in^2/W80 PSI - 0.151 oC-in^2/W
K3-L05 0.102mm | 0.004"
10 PSI - 0.329 oC-in^2/W20 PSI - 0.299 oC-in^2/W40 PSI - 0.253 oC-in^2/W80 PSI - 0.223 oC-in^2/W
Dielectric Strength | Film Thickness | Coating Thickness
Thermal impedance testing performed per ASTM D5470 Test Method. Contact us for additional pressure range figures.
Dielectric Strength
Material codes that start with:
K1 - 5,500 V/mil
K1.5 - 5,100 V/mil
K2 - 4,600 V/mil
K3 - 4,100 V/mil
per ASTM D149
Kapton MT Film Thickness
K1 Substrate - 0.025mm | 0.001"
K1.5 Subsrate - 0.038mm | 0.0015"
K2 Substrate - 0.051mm | 0.002"
K3 Substrate - 0.076mm| 0.003"
Coating Thickness(per side)
Thickness per each side of Kapton
L05 - 0.013mm | 0.0005"
L10 - 0.025mm | 0.001"
L15 - 0.038mm | 0.0015"
Contact us for custom thickness
Single side coating available
Other Information
Material Formats
Master Rolls
Custom Slit Rolls
Sheets

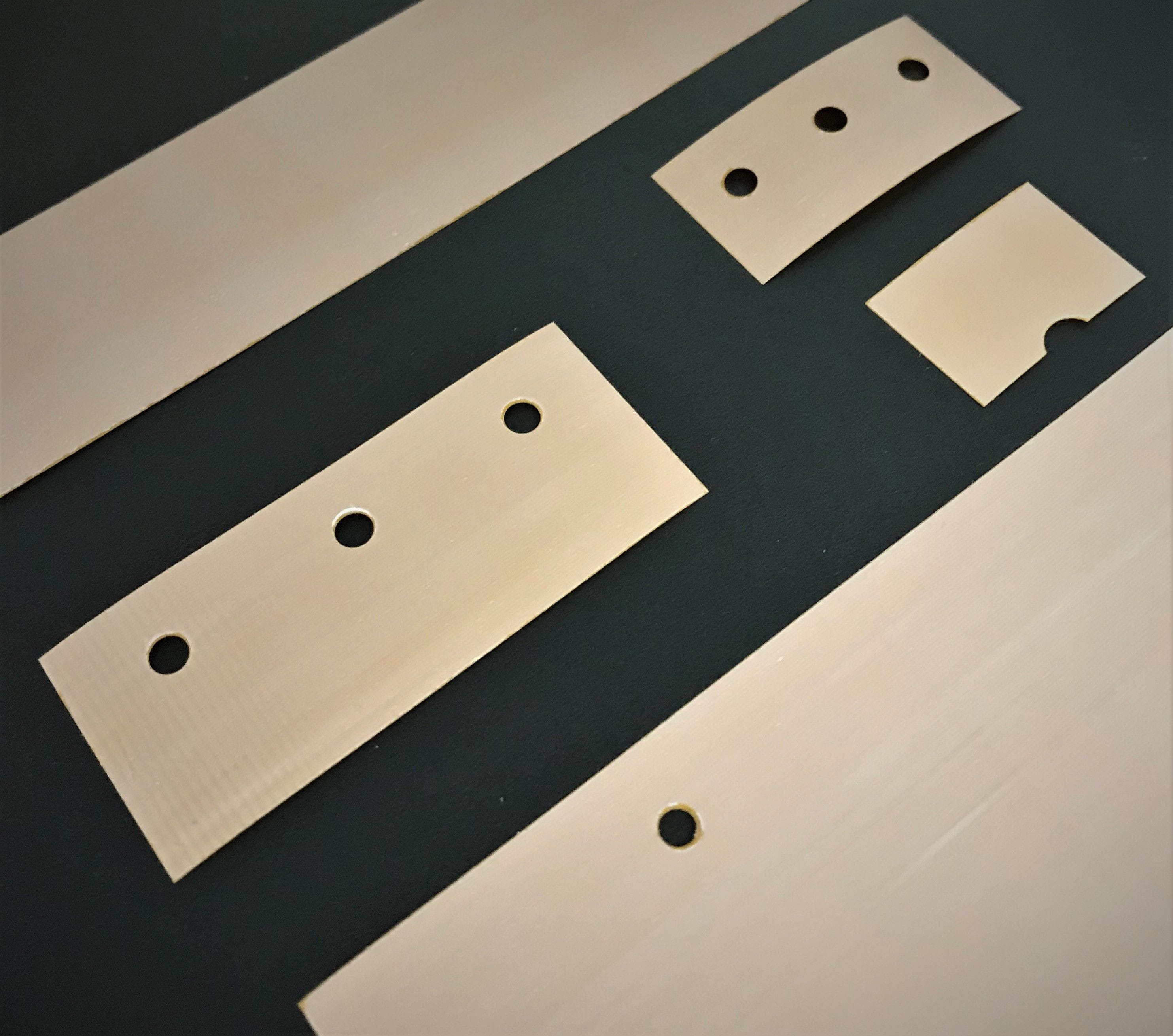

Die cut invidiual pads
Multiple die cut pads per master liner
Die cut continuous reels
Available Tack Backings
Type A - high tack repositionable
See Diaphase 60A
T20 - thermally conductive tack
Optional adhesive edge strips
100% surface backed or discrete tack placement available.
Storage | Shelf Life
Store material in a cool, dry location at 85F / 29C or below in original packaging until use.
Shelf life is 2 years from date of manufacture.
