SILTEL THERMAL INTERFACE SILICONE FILMS
THERMALLY CONDUCTIVE & ELECTRICALLY INSULATING SILICONE FILMS

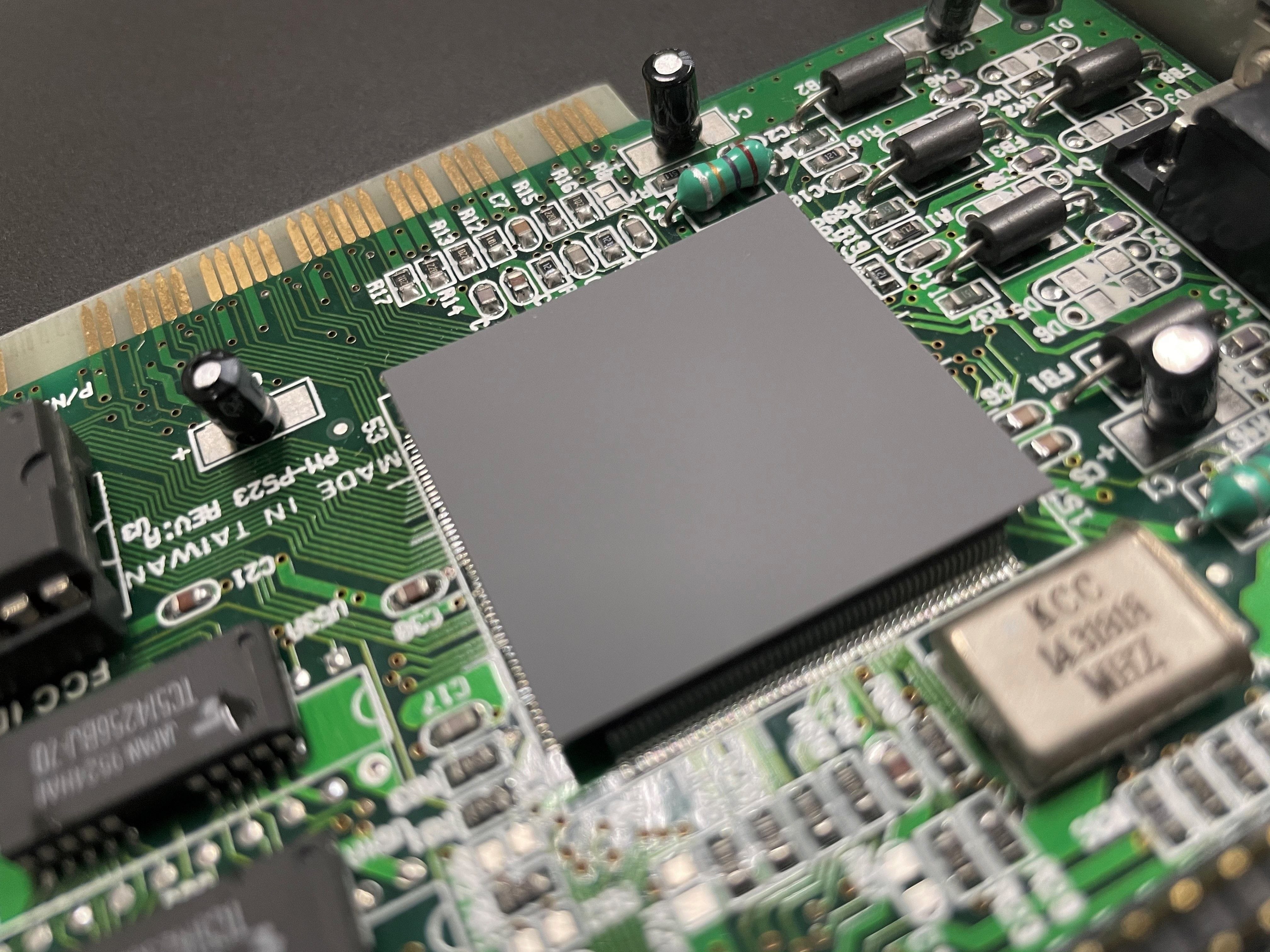

TIMTEL's line of thermally conductive silicone films are available in a range of thermal conductivity performance choices, thicknesses, and tack configurations to meet a wide range of thermal management and pad installation requirements. SILTEL's soft and conformable film surfaces makes them an ideal solution for MOSFET & IBGT, power diodes, AC/DC converters as well as motor or power control units.
SILTEL Thermally Conductive Films offer reliable electrical insulating properties, excellent mechanical stability and high cut-through resistance.
- Several thermal conductivity options
- High performance insulating properties
- Offers high temperature stability
- Soft and conformable film surface design
- Excellent handling characteristics - easy to handle
- Fiberglass, polyimide or no substrate configurations
- Available with 100% surface tack backing (single or double side)
- Available with discrete or edge placement tack
- Reworkable after first device cycle
- Available in rolls, sheets or die cuts
Silicone Films (supported)
SP Film
Thermal Conductivity: 2.0 W/m-KReinforcement: Polyimide FilmThickness: 0.11mm to 0.15mm
SF-TC1.2 Film
Thermal Conductivity: 1.2 W/m-K
Reinforcement: Fiberglass
Thickness: 0.20mm to 0.45mm
SF-TC1.6 Film
Thermal Conductivity: 1.6 W/m-K
Reinforcement: Fiberglass
Thickness: 0.23mm
SF-TC2.0 Film
Thermal Conductivity: 2.0 W/m-KReinforcement: FiberglassThickness: 0.20mm to 0.45mm
SF-TC2.5 Film
Thermal Conductivity: 2.5 W/m-K
Reinforcement: Fiberglass
Thickness: 0.23mm
SF-TC3.0 Film
Thermal Conductivity: 3.0 W/m-K
Reinforcement: Fiberglass
Thickness: 0.20mm to 0.30mm
SF-TC4.0 Film
Thermal Conductivity: 4.0 W/m-KReinforcement: FiberglassThickness: 0.20mm to 0.80mm
SF-TC5.0 Film
Thermal Conductivity: 5.0 W/m-KReinforcement: FiberglassThickness: 0.20mm to 0.45mm
SF-TC8.0 Film
Thermal Conductivity: 8.0 W/m-KReinforcement: FiberglassThickness: 0.20mm to 0.45mm
SF-TC8R Film
Thermal Conductivity: 8.0 W/m-KReinforcement: FiberglassThickness: 0.20mm to 0.45mm
Silicone Films (unsupported)
S-TC2.1 Film
Thermal Conductivity: 2.1 W/m-KReinforcement: NoneThickness: 0.20mm to 0.45mm
Silicone Films (unsupported) - Ultra High Thermal Conductivity
SL-TC15.0
Thermal Conductivity: 15.0 W/m-KReinforcement: NoneThickness: 0.50mm to 2.00mm
Hardness: 35 (shore 00)
SL-TC16.0
Thermal Conductivity: 16.0 W/m-KReinforcement: NoneThickness: 0.50mm to 2.00mm
Hardness: 45 (shore 00)
SL-TC20.0
Thermal Conductivity: 20.0 W/m-KReinforcement: NoneThickness: 0.25mm to 0.50mm
Hardness: 55 (shore 00)
SL-TC50.0
Thermal Conductivity: 50.0 W/m-KReinforcement: NoneThickness: 0.20mm to 1.00mm
Hardness: 65 (shore 00)
Request Samples or Technical Data Sheet
