INTRAPHASE 60 PHASE CHANGE MATERIAL (ALUMINUM FOIL)
Intraphase 60 Phase Change Thermal Interface Material

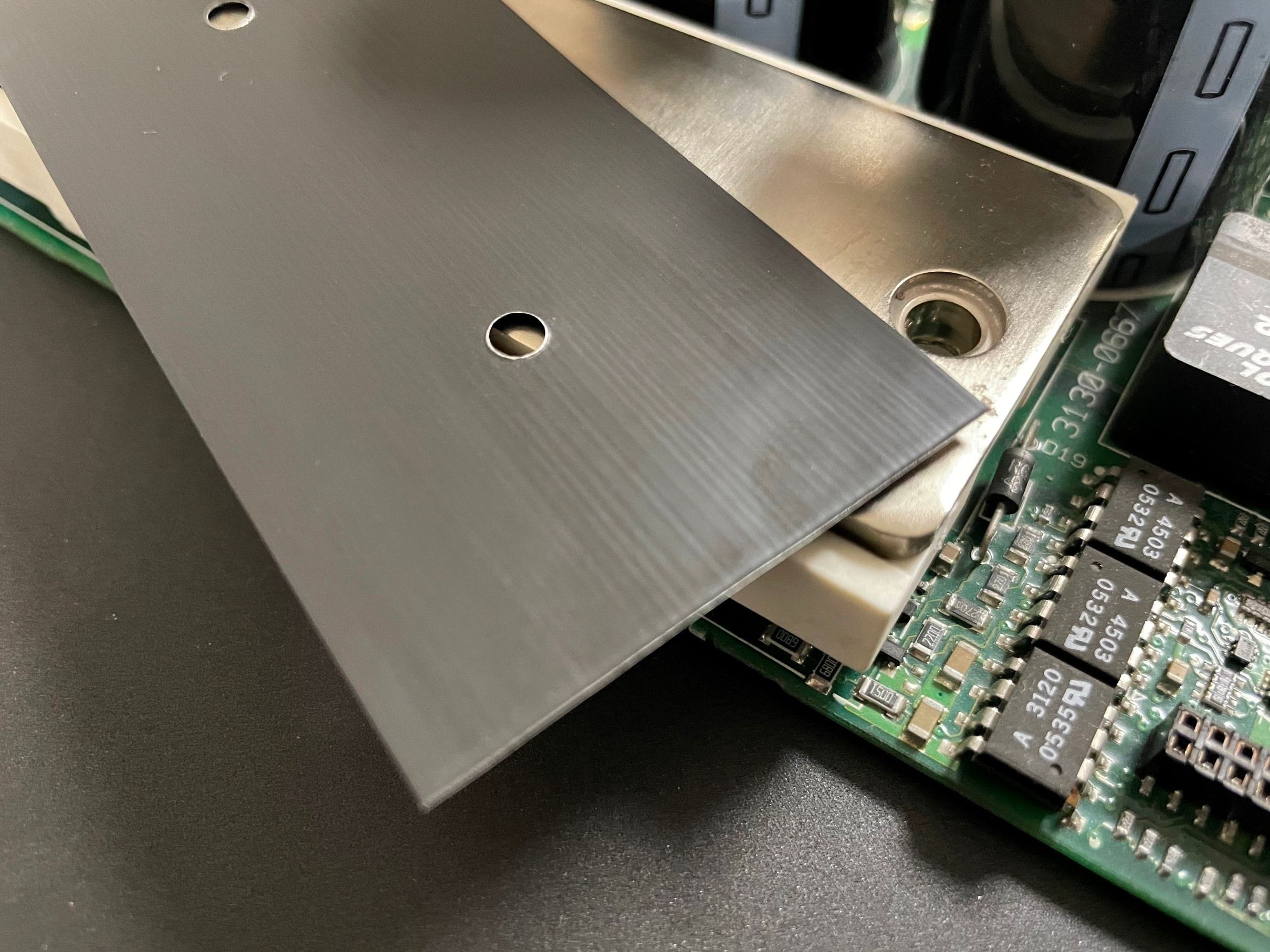

Similar in design to its IntraPhase 50 counterpart, IntraPhase 60 offers all the same performance offerings but designed with a higher phase change temperature of 60C for power devices with higher operating temperatures. IntraPhase 60 is a graphite filled phase change thermal interface material offering efficient heat transfer from device to sink packaged with a clean drop-in-place assembly solution.
IntraPhase 60 not only achieves efficient thermal transfer through its graphite filled compound coating design but by providing optimal phase change at normal device operating temperatures adjusting for any interface flatness concerns, surface imperfections as well as elimination of air from within the interface.
IntraPhase 60 Features and Benefits
- Aluminum foil substrate carrier
- Non-Dielectric Thermal Pad | 60C Phase Change Temperature
- Easy to handle - drop in place thermal pad
- Low thermal impedance
- Thixotropic - silicone free compound design
- Mulitple foil substrate and coating thickness options
- Excellent replacement for thermal greases
- 100% surface, discrete or edge tack back options available
- Single side aluminum foil coating options available
- Available in rolls, sheets or die cuts
To request samples or download the technical data sheet, please click on the respective link located to the right or call:
TF: 1-888-989-3832 (US)
International: +1-949-369-7676.
Foil Substrate Thickness
- AL2 - 0.051mm | 0.002"
- AL3 - 0.076mm | 0.003"
- AL5 - 0.127mm | 0.005"
Coating Thickness (per side)
- G03 - 0.006mm | 0.00025"
- G05 - 0.013mm | 0.0005"
- G06 - 0.017mm | 0.00065"
- G13 - 0.032mm | 0.00125"
AL number indicates aluminum foil thickness in mils.
G number indicates coating thickness per side in mils
Standard Cross Section
Format: Aluminum foil substrate coated both sides with a uniform thickness of phase change compound.
Typical Applications
General Specifications
- Power Modules | IBGT
- Power Electronics
- LED Assembly
- Transistor Packages
- Diodes / Relays
- Microprocessor | Heat Sink
- Power Semiconductors
- RF Components
- Device | Case Sink
- Single or Multi-Device Pad Configurations
- Phase Change Temperature: 60C
- Compound Flow Design: Thixotropic
- Volumetric Expansion: 15%
- Maximum Operating Temperature: 150C
- Material Color: Black
- Material Surface: Dry Compound Coating @ Room Temp
- Tack Options: Yes (PSA options listed at bottom)
Compliance
- RoHs Compliant
- REACH Compliant
- Halogen Free Compliant
Thermal Impedance
Thermal impedance testing performed per ASTM D5470 Test Method. All figures shown are based upon AL2 foil substrate and F03, F05 and F06 coating thickness. Contact us for thermal impedance figures for thicker or thinner foil and coating types.
AL2-G03 0.064mm | 0.0025"
10 PSI - 0.020 oC-in^2/W
20 PSI - 0.014 oC-in^2/W
40 PSI - 0.010 oC-in^2/W
80 PSI - 0.007 oC-in^2/W
AL2-G05 0.076mm | 0.003"
10 PSI - 0.022 oC-in^2/W20 PSI - 0.015 oC-in^2/W40 PSI - 0.011 oC-in^2/W80 PSI - 0.008 oC-in^2/W
AL2-G06 0.084mm | 0.0033"
10 PSI - 0.028 oC-in^2/W20 PSI - 0.020 oC-in^2/W40 PSI - 0.014 oC-in^2/W80 PSI - 0.010 oC-in^2/W
Foil Type | Film Thickness | Coating Thickness
Thermal impedance testing performed per ASTM D5470 Test Method. Contact us for additional pressure range figures.
Aluminum Foil Type
All IntraPhase 60 thermal pad configurations utilize type 1145-O (dead soft) aluminum temper.
Aluminum Foil Thickness
AL1 Foil - 0.025mm | 0.001"
AL2 Foil - 0.051mm | 0.002"
AL3 Foil - 0.076mm | 0.003"
AL5 Foil - 0.102mm | 0.005"
AL1.5 Foil (0.038mm, 0.0015") available upon request
Coating Thickness
G03 - 0.006mm | 0.0003" per side
G05 - 0.013mm | 0.0005" per side
G06 - 0.017mm | 0.00065" per side
G13 - 0.032mm | 0.00125" per side
Contact us for custom thickness
Single side coating available
Other Information
Material Formats
Master Rolls
Custom Slit Rolls
Sheets
Die cut invidiual pads
Multiple die cut pads per master liner
Die cut continuous reels
Available Tack Backings
TYPE A - low tack repositionable
T20 - thermally conductive tack
Optional thermal pad edge strips
100% surface backed or discrete tack placement available.
Storage | Shelf Life
Store material in a cool, dry location at 85F / 29C or below in original packaging until use.
Shelf life is 2 years from date of manufacture.
