SILTEL SL-TC50.0 THERMALLY CONDUCTIVE SILICONE FILM
SILTEL SL-TC50.0 Ultra-High Thermally Conductive Gap Pad
SILTEL SL-TC50.0 offers an ultra high thermal conductivity of 50.0 W/m-K packaged within a soft and compliant non-dielectric thermal film design. SL-TC50.0 is suitable for a range of electronic packages and heat sinks where large gaps and big flatness tolerances exist.
SL-TC50.0's highly filled thermally conductive form offers high anisotropic thermal conductivty packaged with a conformal surface structure and softness that is gauranteed to provide excellent compliance even at low pressures.
SL-TC50.0 is ideal for application not needing dielectric protection but requires ultra-high thermal performance, gap filling and high surface compliance.
SILTEL SL-TC50.0 Features and Benefits
- Ultra High Thermal Conductivity - 50.0 W/m-K
- Anisotropic thermal film design
- Non-dielectric thermal film
- Good surface compliance
- Available in a range of film thicknesses
- Shock absorbing
- Excellent chemical resistance
- Offers high temperature stability
- Ideal for a range of surface flatness conditions
- Dry surface thermal film
- Optional discrete tack placement on a pre-formed pad
- Avaialble in sheet or die cuts
To request samples or technical data sheet, please click on thie link located to the right or call TF: 1-888-989-3832 (US) International: +1-949-369-7676.
Material Thickness

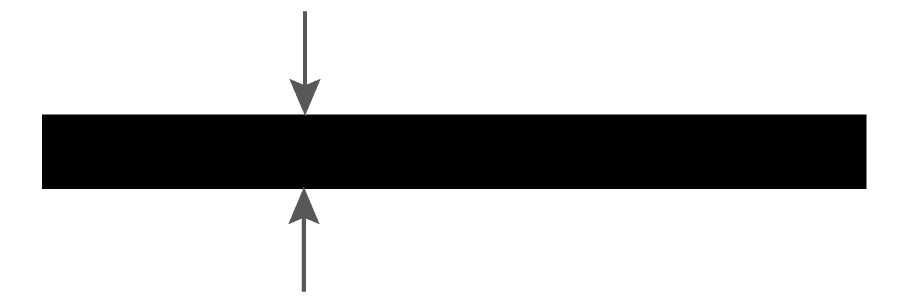

Standard Cross Section
- SL.20-TC50.0 (0.20mm)
- SL.50-TC50.0 (0.50mm)
- SL1.0-TC50.0 (1.00mm)
Format: Free standing thermally conductive particle filled silicone film (unsupported)
.png)
Typical Applications
General Specifications
- MOSFET and IGBT
- Motor - Power Control Units
- Automotivce Management Systems
- Power Supply | UPS Systems
- Power Semiconductor
- Solar Systems
- Power Diodes
- AC/DC Converters
- Switch Mode Power Supplies
- Large Gaps or High Surface Flatness Tolerances
- Coating: silicone
- Support: none (free standing)
- Operating Temperature: -50C to 180C
- Material Color: Black
- Material Surface: Dry film
- Tack Back Options: SIL1 (discrete placement on die cuts only)
Compliance
- RoHs Compliant
- REACH Compliant
- Halogen Free Compliant
Technical Specifications
Thermal impedance testing performed per ASTM D5470 Test Method. Contact us to request thermal impedance values for specific pressures as well as thermal impedance values for adhesive backed versions.
SL.20-TC50.0 (0.20mm)
Thermal Impedance
10 PSI - 0.050 oC-in^2/W
30 PSI - 0.027 oC-in^2/W
90 PSI - 0.020 oC-in^2/W
Hardness
65 (shore 00)
Volume Resitivity
<100 ohm-cm
SL.50-TC50.0 (0.50mm)
Thermal Impedance10 PSI - 0.095 oC-in^2/W30 PSI - 0.075 oC-in^2/W90 PSI - 0.060 oC-in^2/W
Hardness65 (shore 00)
Volume Resitivity<100 ohm-cm
Hardness65 (shore 00)
Volume Resitivity<100 ohm-cm
SL1.0-TC50.0 (1.00mm)
Thermal Impedance10 PSI - 0.130 oC-in^2/W30 PSI - 0.110 oC-in^2/W90 PSI - 0.090 oC-in^2/W
Hardness65 (shore 00)
Volume Resitivity<100 ohm-cm
Hardness65 (shore 00)
Volume Resitivity<100 ohm-cm
Other Information
Material Formats
Sheets
Die cut invidiual pads
Multiple die cut pads per master liner
Available Tack Backings
SIL1 (0.025mm)
low tack repositionable
high temperature silicone tack
Note: SIL1 tack is only available for discrete placement on die cut pad only.
Storage | Shelf Life
Store material in a cool, dry location at 85F / 29C or below in original packaging until use.
Shelf life is 2 years from date of manufacture.
