SILVERPHASE 50 PHASE CHANGE MATERIAL (ALUMINUM FOIL)
Silverphase 50 Electrically Conductive Phase Change

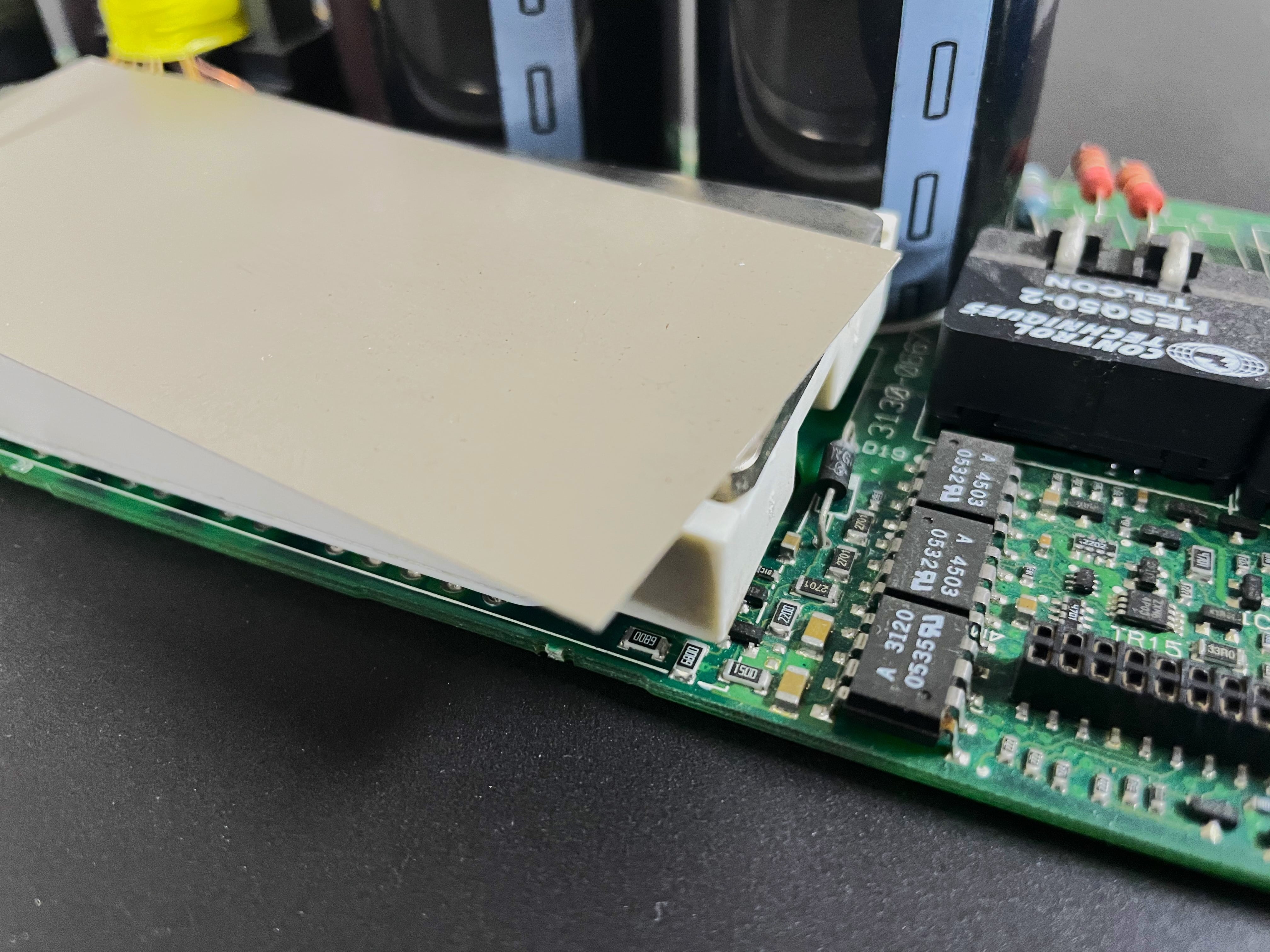

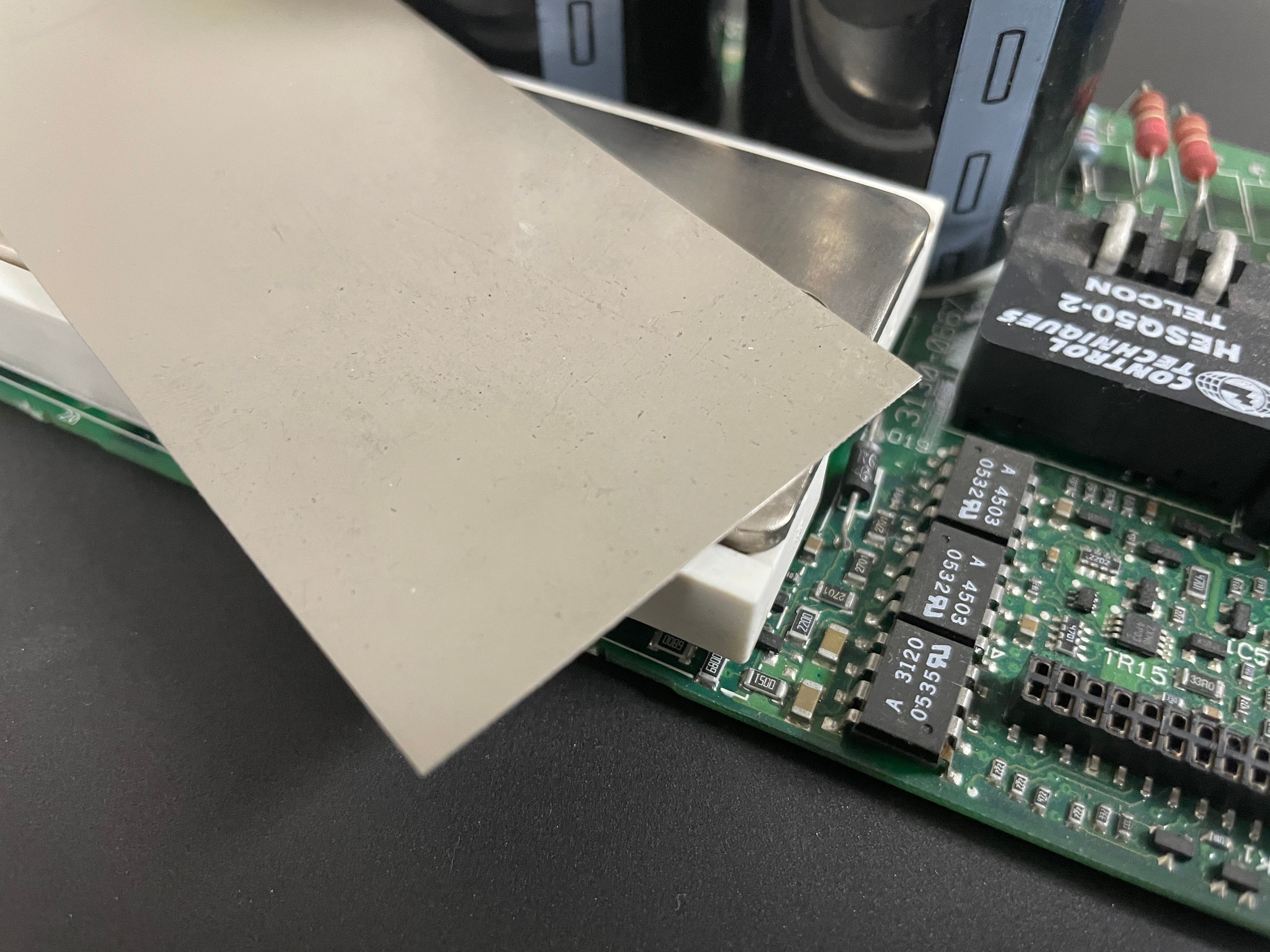

SilverPhase is a high performance silver filled phase change thermal interface material which utilizes an aluminum substrate carrier to act as a thermally and electrically conductive carrier in order to deliver a uniform thickness of silver filled phase change compound on both sides. SilverPhase 50 not only offers efficient thermal transfer by phase changing during normal device operating temperatures, but provides a reliable electrically conductive path across the interface. All at the same time driving out the air from within the interface and adjusting for any surface imperfections or flatness concerns that may exist across the contact surfaces leading to an overall low thermal impedance.
Being able to manufacture Silverphase 50 in multiple compound thicknesses as well as aluminum substrate thicknesses allows us to meet a wide range of electronic cooling applications ranging from Power Electronics, Transistors, Diodes, Microprocessors or any type of heat generating isolated power device requiring efficient and reliable thermal transfer into a heat sink/case sink.
SilverPhase 50 Features and Benefits
- Aluminum foil substrate carrier
- Electrically Conductive | 50C Phase Change Temperature
- Volume Resistivity - 2 ohm-cm
- Easy to handle - drop in place thermal pad
- Low thermal impedance
- Thixotropic - silicone free compound design
- Mulitple foil substrate and coating thickness options
- Excellent replacement for thermal greases
- 100% surface, discrete or edge tack back options available
- Single side aluminum foil coating options available
- Available in rolls, sheets or die cuts
To request samples or download the technical data sheet, please click on the respective link located to the right or call:
TF: 1-888-989-3832 (US)
International: +1-949-369-7676.
Foil Substrate Thickness
- AL1.5 - 0.038mm | 0.0015"
- AL2 - 0.051mm | 0.002"
Coating Thickness (per side)
- S10 - 0.025mm | 0.001"
- S15 - 0.038mm | 0.0015"
AL number indicates aluminum foil thickness in mils.
S number indicates coating thickness per side in mils
Standard Cross Section
Format: Aluminum foil substrate coated both sides with a uniform thickness of phase change compound.
Typical Applications
General Specifications
- Power Modules | IBGT
- Power Electronics
- SCR Device
- LED Assembly
- Transistor Packages
- Diodes / Relays
- Microprocessor | Heat Sink
- Power Semiconductors
- RF Components
- Device | Case Sink
- Single or Multi-Device Pad Configurations
- Phase Change Temperature: 50C
- Volume Resisitivity: 2 ohm-cm (max)
- Compound Flow Design: Thixotropic
- Volumetric Expansion: 15%
- Maximum Operating Temperature: 150C
- Material Color: Beige
- Material Surface: Dry Compound Coating @ Room Temp
- Tack Options: Yes (PSA options listed at bottom)
Compliance
- RoHs Compliant
- REACH Compliant
- Halogen Free Compliant
Thermal Impedance
Thermal impedance testing performed per ASTM D5470 Test Method. Contact us for aluminum thickness and coating thickness combinations not listed below.
AL1.5-S10 0.084mm | 0.0035"
10 PSI - 0.020 oC-in^2/W
20 PSI - 0.014 oC-in^2/W
40 PSI - 0.010 oC-in^2/W
80 PSI - 0.007 oC-in^2/W
AL1.5-S15 0.114mm | 0.0045"
10 PSI - 0.022 oC-in^2/W20 PSI - 0.015 oC-in^2/W40 PSI - 0.011 oC-in^2/W80 PSI - 0.008 oC-in^2/W
AL2-S10 0.102mm | 0.004"
10 PSI - 0.020 oC-in^2/W
20 PSI - 0.014 oC-in^2/W
40 PSI - 0.010 oC-in^2/W
80 PSI - 0.007 oC-in^2/W
AL2-S15 0.127mm | 0.005"
10 PSI - 0.022 oC-in^2/W20 PSI - 0.015 oC-in^2/W40 PSI - 0.011 oC-in^2/W80 PSI - 0.008 oC-in^2/W
Foil Type | Film Thickness | Coating Thickness
Thermal impedance testing performed per ASTM D5470 Test Method. Contact us for additional pressure range figures.
Aluminum Foil Type
All SilverPhase 50 thermal pad configurations utilize type 1145-O (dead soft) aluminum temper.
Aluminum Foil Thickness
AL1.5 Foil - 0.038mm | 0.0015"
AL2 Foil - 0.051mm | 0.002"
Coating Thickness
S10 - 0.025mm | 0.001" per side
S15 - 0.038mm | 0.0015" per side
Contact us for custom thickness
Single side coating available
Other Information
Material Formats
Master Rolls
Custom Slit Rolls
Sheets
Die cut invidiual pads
Multiple die cut pads per master liner
Die cut continuous reels
Available Tack Backings
TYPE A - low tack repositionable
T20 - thermally conductive tack
Optional thermal pad edge strips
100% surface backed or discrete tack placement available.
Storage | Shelf Life
Store material in a cool, dry location at 85F / 29C or below in original packaging until use.
Shelf life is 2 years from date of manufacture.
