GRAPHENOL AND INTRAGRAPH HEAT SPREADING FILMS
HEAT SPREADING GRAPHITE FILMS

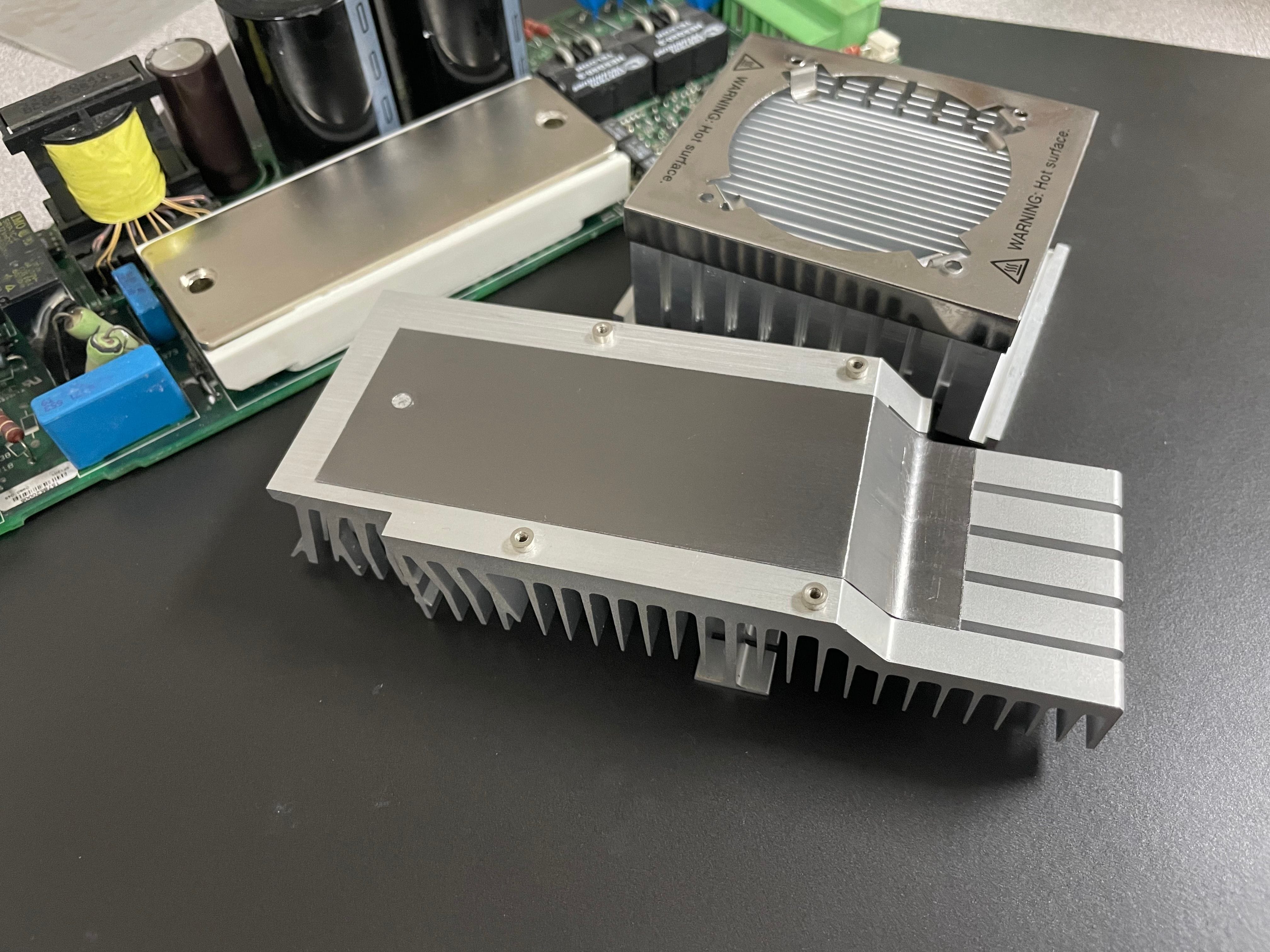

Our line of Graphenol and IntraGraph heat spreader films are available in a range of graphite types, performance choices, film thicknesses, barrier film laminations and phase change coating options.
Graphenol PCM and HS series offers ultra-high lateral (in-plane) heat spreading capabilities through the use of an extremely handling friendly and lightweight pryolytic film substrate. The PCM (phase change coated) version further allows for a signficant reduction in inteface surface resistance providing high heat transfer from device to substrate spreader.....and substrate spreader to heat disspating structure.
IntraGraph PCM and HS series is a natural graphite foil available in thicker compositions ranging from 0.15mm to 0.27mm thick. At these thicknesses, IntraGraph is ideal for use in low power density applications where low cost considerations and larger interface gap filling is required. The PCM (phase change coated) version offers a significant benefit by reducing surface resistance and increasing thermal transfer over a range of pressures from 5 to 100 PSI.
Graphite Heat Spreading Film Features and Benefits
- High lateral heat spreading capabilities
- Optional phase change compound coating (PCM Versions)
- Pyrolytic and natural graphite film substrate options
- Available in a range of film thicknesses
- High temperature resistant TIM material
- Durable and flexible film design
- Easily navigate angles and bends without thermal impact
- Electrically conductive film solution
- Excellent EMI-shielding capability
- Lightweight TIM material
- Chemically resistant
- Resistant to long-term oxidation (graphite based)
- Excellent replacement for ceramic, aluminum or copper foils
- Adhesive backed options (100% backed, discrete placement)
- Insulation film, metal foil or SILTEL lamination options
- Available in rolls, sheets or die cuts
PCM: Phase Change Material
Phase Change Coated Heat Spreading Graphite Films
Graphenol PCM 50
50C Phase Change TepmeratureSubstrate: Graphenol HS (pyrolytic)In-Plane: 1,500 W/m-K
Thru-Plane: 5.0 W/m-K
Thickness: 0.057mm to 0.095mm
Non-Dielectric Material
IntraGraph PCM 50
50C Phase Change Tepmerature
Substrate: IntraGraph HS
In-Plane: 140 W/m-K
Thru-Plane: 8.0 W/m-K
Thickness: 0.15mm to 0.30mm
Non-Dielectric Material
Heat Spreading Graphite Films (uncoated - dry surface)
Graphenol HS Film
Substrate: Pyrolytic Graphite
In-Plane: 1,500 W/m-K
Thru-Plane: 5.0 W/m-K
Thickness: 0.032mm to 0.070mm
Non-Dielectric Material
Optional Single Side Tack
Optional Barrier Film Backings
IntraGraph HS Film
Substrate: Natural Graphite
In-Plane: 140 W/m-K
Thru-Plane: 8.0 W/m-K
Thickness: 0.13mm to 0.25mm
Non-Dielectric Material
Optional Single Side Tack
Optional Barrier Film Backings
Request Sample or Technical Data Sheet
