SILTEL SG-TC11.0S THERMALLY CONDUCTIVE ULTRA SOFT PAD

SILTEL SG-TC11.0S Ultra Soft Thermally Conductive Gap Pad

SILTEL SG-TC11.0S is an electrically insulating thermally conductive ULTRA Soft silicone gap filler material ideal for use in electronic applications where thermal transfer over minimal gaps creating surface contact to multiple device surfaces/heights must be achieved. Due to the specific formulation and ceramic particle filler loading, SG-TC11.0S offers high thermal conductivity packaged with high surface compliance all within an extremely conformable elastomer design. With being able to operate at almost zero pressure, it quickly begins to fill surface gaps which significantly minimizes resistance leading to efficient and reliable heat transfer. SILTEL SG-TC11.0S is available in sheets or TIMTEL cut parts to match a wide range of industry standard or customer defined outlines.
SILTEL SG-TC11.0S Ultra Soft Features and Benefits
  • High Thermal Conductivity - 11.0 W/m-K
  • Ultra Soft Design: Extreme softness (putty film type)
  • Extremely soft and compliable pad design
  • Electrically insulating thermal pad solution
  • Excellent filling for minimal gaps
  • Ideal for managing a range of flatness conditions
  • Operates at almost zero pressure
  • High chemical resistance
  • Offers high temperature stability
  • Standard double side tack configuration
  • Availabe in sheets or die cuts
To request samples or technical data sheet, please click on thie link located to the right or call TF: 1-888-989-3832 (US) International: +1-949-369-7676.
request samples | data sheet

Material Thickness

  • SG1.5-TC11.0S (1.50mm)
  • SG2.0-TC11.0S (2.00mm)
Format: Unsupported ceramic filled soft putty type pad

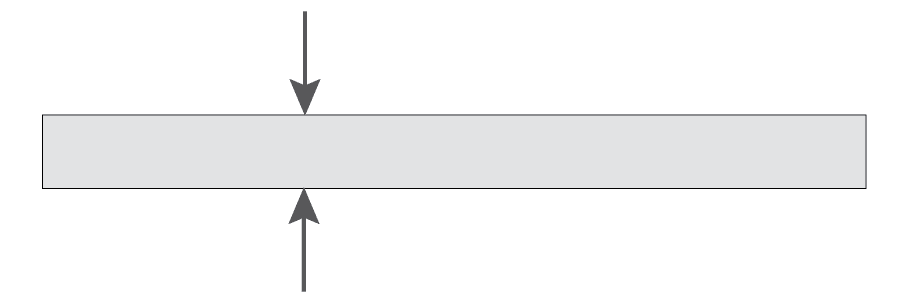

Standard Cross Section

Typical Applications

General Specifications

  • SMD Packages
  • Through Hole Vias
  • Capacitors
  • Heat Pipes
  • Multi-Chip Configurations
  • Interface Gap Management
  • Automotive Electronics
  • Consumer Electronics
  • Medical Electronics
  • Heat Sink | Case Sink
  • Coating: Ceramic filled silicone (putty film type)
  • Support: none
  • Operating Temperautre: -50C to 180C
  • Material Color: Light Gray
  • Gap Pad Surface: Light tack both sides
  • Tack Back Options: none

Compliance

  • RoHs Compliant
  • REACH Compliant
  • Halogen Free Compliant

Technical Specifications

Thermal impedance testing performed per ASTM D5470 Test Method. Contact us to request thermal impedance values for specific pressures as well as thermal impedance values for adhesive backed versions.
SG1.5-TC11.S (1.50mm)
Thermal Impedance @ 0.80mm - 0.14 oC-in^2/W @ 0.50mm - 0.10 oC-in^2/W @ 0.20mm - 0.06 oC-in^2/W Dielectric Strength 11 kV/mm Volume Resistivity 7 x 10^7 Dielectric Constant 7.5 @ 1 MHZ
SG2.0-TC11.0S (2.00mm)
Thermal Impedance @ 1.50mm - 0.24 oC-in^2/W@ 0.80mm - 0.14 oC-in^2/W@ 0.50mm - 0.10 oC-in^2/W@ 0.20mm - 0.06 oC-in^2/W
Dielectric Strength11 kV/mm
Volume Resistivity7 x 10^7
Dielectric Constant7.5 @ 1 MHZ

Other Information

Material Formats
Sheets Die cut invidiual pads Multiple die cut pads per master liner
Available Tack Backings
No additional tack options available Note: standard pad configuration is double side light natural tack
Storage | Shelf Life
Store material in a cool, dry location at 85F / 29C or below in original packaging until use. Shelf life is 2 years from date of manufacture.
