Material Thickness
- X45-5 - 0.13mm | 0.005"
- X45-8 - 0.20mm | 0.008"
- X45-12 - 0.30mm | 0.012"
Format: Free standing phase change thermal inteface film with release liner.
Standard Cross Section
Release Liner | Thermal Pad Transfer System
When designing our X45 (XoPhase) Phase Change Film, the thermal performance was not the only target. An additional key advantage in using X45 is the offering of the TIMTEL Die Cut Thermal Pad Transfer System.
The purpose of this die cut design was to avoid common installation issues typically experienced by similar phase change thermal pads on the market place today such as not releasing properly from the liner and pad tearing.

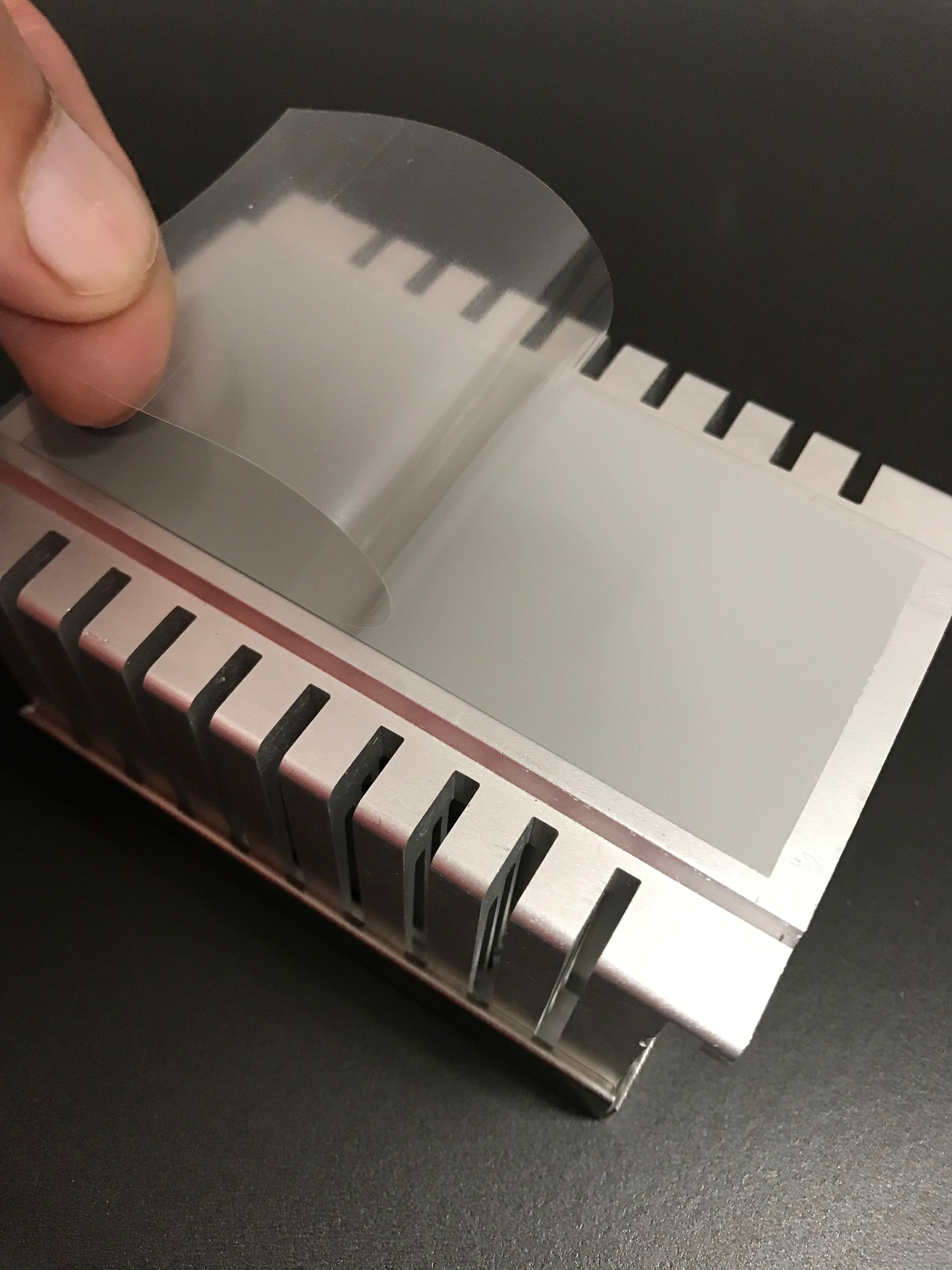

X45 is delivered with a top and bottom clear release liner. The top liner is removed first to expose the top of the X45 film. Once the top liner is removed, the pad is applied to the module or application surface, slight even pressure is then applied, and the final liner with extended tab is removed.

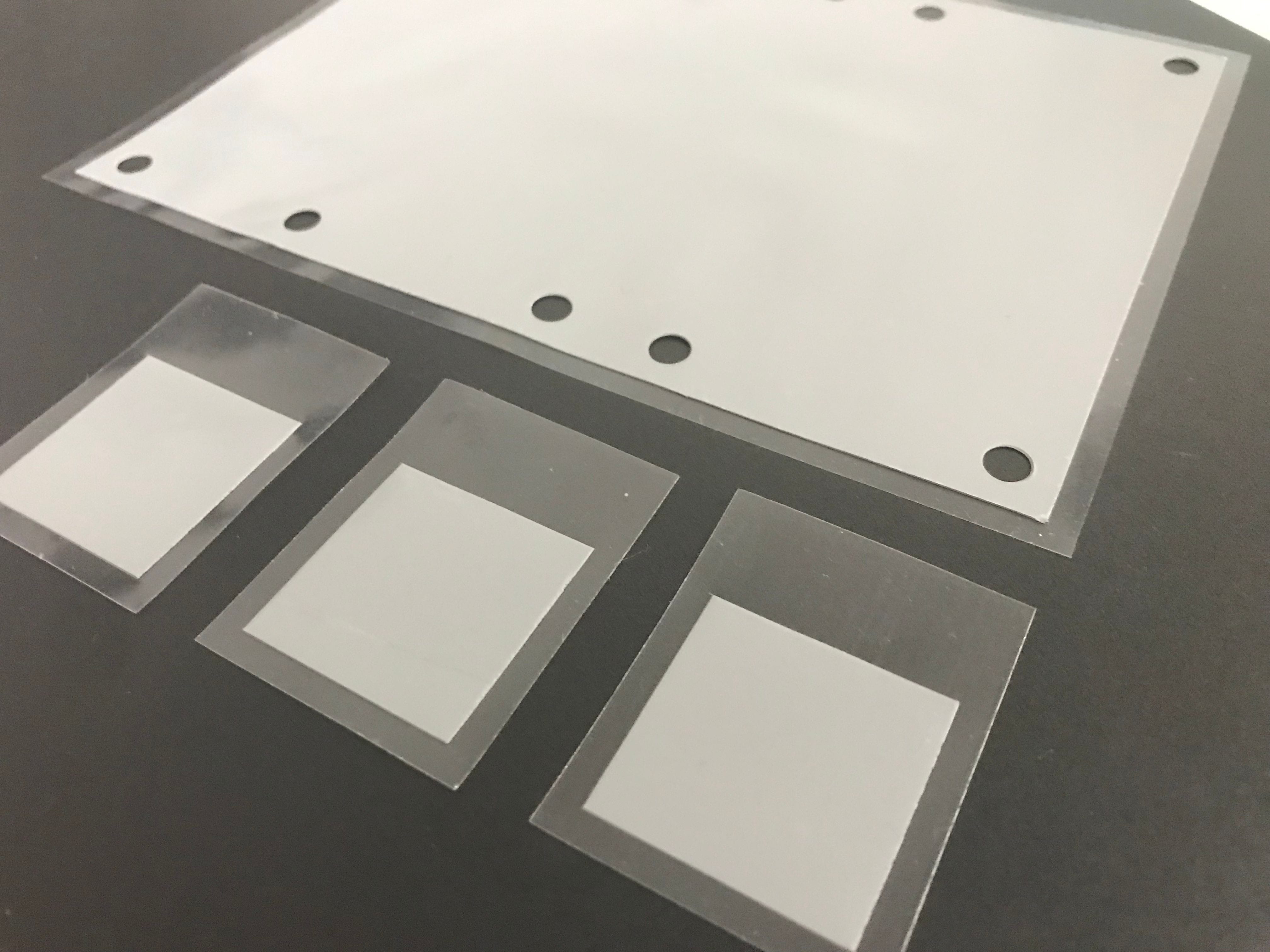

Extended liner around perimeter of X45 pad is fully customizable with regards to clearance distance around the pad.
